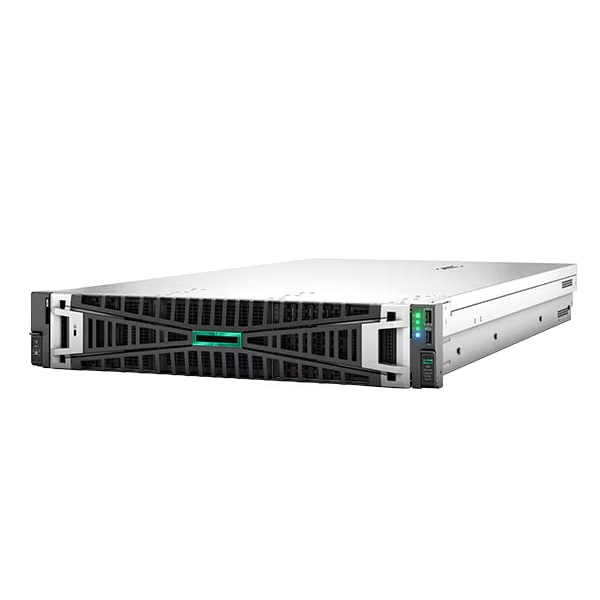

HPE ProLiant Compute DL384 Gen12 Rack Server

detail description for HPE ProLiant Compute DL384 Gen12 Rack Server

Short Description:

• Brand: HPE Product Name: HPE ProLiant Compute DL384 Gen12 2U Rack Server Form Factor: 2U Rack Server Processor: NVIDIA Grace CPU and Hopper GPU Memory: Up to 1248 GB Storages: Supported operating systemsRHEL 9 (9.2+) at launch with SLES and Ubuntu shortly thereafter. See the link in additional resources to HPE Servers Support & Certification Matrices for the latest Server Drives: Drive supportedUp to 8 EDSFF NVMe Gen5 drives

1. Management Software:

• Infrastructure managementHPE iLO Standard with intelligent provisioning (embedded), HPE iLO Advanced

2. Server Controllers:

• Storage controllerHW RAID controllers are not supported this generation for either the M.2 or EDSFF NVMe drives

3. Server Cooling

• System fan features6 hot plug redundant fans

4. Server Drives:

• Drive supportedUp to 8 EDSFF NVMe Gen5 drives

5. Server Expansions:

• Expansion slotsUp to four high speed PCIe Gen5 x16 devices, Up to four PCIe Full Height Half Length (FHHL) slots, or Up to two PCIe FHHL and two OCP 3.0

6. Server Form Factor:

• Form factor2U Air cooled 19-inch rack server with 31.75 in (806 mm) depth

7. Server Power:

• Power supply typeUp to 4 HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kits For a single GH200: 2+0, 2+1, or 2+2 redundancy. Minimum of two power supplies. For a dual GH200 with NVL2: 3+1 redundancy, and 4 power supplies required, no other choices supported.

8. Processor:

• Processor familyNVIDIA Grace CPU and Hopper GPU

9. Warranty:

• Warranty3/3/3: Server warranty includes three years of parts, three years of labor, and three years of onsite support coverage

10. Superchip:

• Superchip nameNVIDIA GH200 Grace Hopper Superchip
• Superchips per serverTwo superchips for NVIDIA GH200 NVL2
• Total Coherent MemoryUp to 1248 GB
• CPUNVIDIA Grace with 72 Arm Neoverse V2 cores
• CPU MemoryUp to 480 GB LPDDR5X
• CPU per SuperchipOne
• GPUNVIDIA Hopper
• GPU MemoryUp to 144 GB HBM3e
• GPU per SuperchipOne
• Superchip total memoryUp to 480 GB of LPDDR5X memory with error-correction code (ECC), 144 GB of HBM3e, for up to 624 GB of fast-access memory per superchip. For our dual superchip server this provides up to 1248 GB of coherent memory for you largest problems.

11. Operating System:

• Supported operating systemsRHEL 9 (9.2+) at launch with SLES and Ubuntu shortly thereafter. See the link in additional resources to HPE Servers Support & Certification Matrices for the latest
